ePropulsion Spirit 1.0 Plus

Specifications

Model	Spirit 1.0 Plus	Category Name	Outboard Engines	Year	2025
Sale Type	New	Manufacturer	ePropulsion	Odometer	km
Motor	Brushless DC motor	Battery	Spirit Battery Plus, 1276 Wh li-ion polymer	Propeller	11″ × 5.8″ 2-blade composite propeller
Rated Power	1 kW	Charing Time	Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs	Direct Drive
Motor Weight	23.4 lbs	Shaft Length	Extra Short, Short, Long	Input Voltage	39V – 60V
Battery Weight	19.2 lbs	External Battery	Yes, and E-Series Battery recommended	Trim And Tilt Angle	0°, 7°, 14°, 21° / 70°
Price	Contact for price CAD

Description

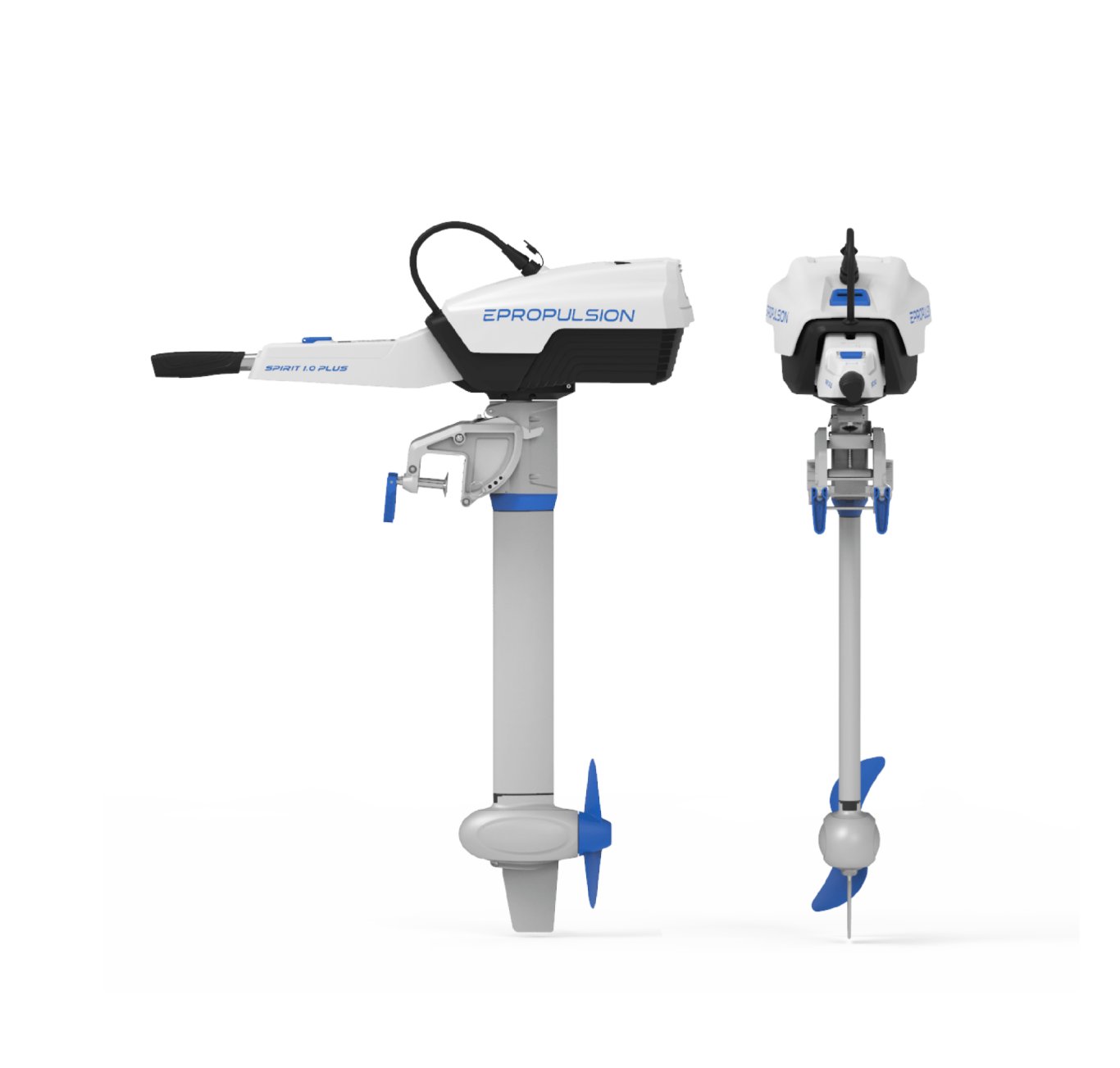

Introducing Spirit 1.0 Plus

Spirit 1.0 Plus is a portable 1kW electric outboard made for dinghies, fishing boats, sailboats and tenders. It features a 1276 Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.

PERFORMANCE AND RANGE

At the core of Spirit 1.0 Plus electric outboard motor, it’s a 1kW BLDC motor, comparable with 3HP petrol outboard (propulsive power).

Power (W)	Speed (mph / kph)	Runtime (hh:mm)	Range (mile / km)
35	2.2 / 3.5	36:25	80 / 129
65	2.7 / 4.3	19:35	53 / 85.3
125	3.5 / 5.6	10:00	35 / 56
250	4.4 / 7.1	5:00	22 / 35.5
500	5.3 / 8.5	2:30	13.3 / 21.3
750	5.7 / 9.2	1:40	9.5 / 15.3
1000	6.2 / 10	1:15	7.8 / 12.5

* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

BATTERY

Positive Buoyancy

Never worry the battery drops into the water.

1276 Wh Capacity

High energy density in a compact size to build large battery capacity.

180W Solar Charging

Dual power ports allow solar charging when discharging.

E-Series Battery

Extend the runtime to an entire day by replacing the integrated Spirit battery.

FEATURES

Designed for Portability

Spirit 1.0 Plus is easy to transport. It would be a pleasure to have it in your gear list when preparing a trip.

Digital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.

Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.

Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.

Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.

Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.

Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat

Ambidextrous Operation
Turning throttle easily either from the left-hand or right-hand side.

LITERATURE

Name	Link
Leaflet: Spirit 1.0 Plus	Downlowd
User Manual: Spirit 1.0 Plus	Downlowd
Technical drawing: Spirit 1.0 Plus	Downlowd
