ePropulsion Spirit 1.0 Evo

Specifications

Model	Spirit 1.0 Evo	Category Name	Outboard Engines	Year	2025
Sale Type	New	Manufacturer	ePropulsion	Odometer	km
Motor	Brushless DC motor	Battery	Spirit Battery Plus, 1276 Wh li-ion polymer	Control	Evo Tiller
Propeller	11″ × 5.8″ 2-blade composite propeller	Rated Power	1 kW	Direct Drive
Motor Weight	24.9 lbs	Shaft Length	Short, Long	Fast Charging	3.5 Hrs
Input Voltage	39V – 60V	Battery Weight	19.2 lbs	External Battery	Yes, and E-Series Battery recommended
Hydrogeneration		Standard Charging	8.5 Hrs	Trim And Tilt Angle	0°, 7°, 14°, 21° / 70°
Price	Contact for price CAD

Description

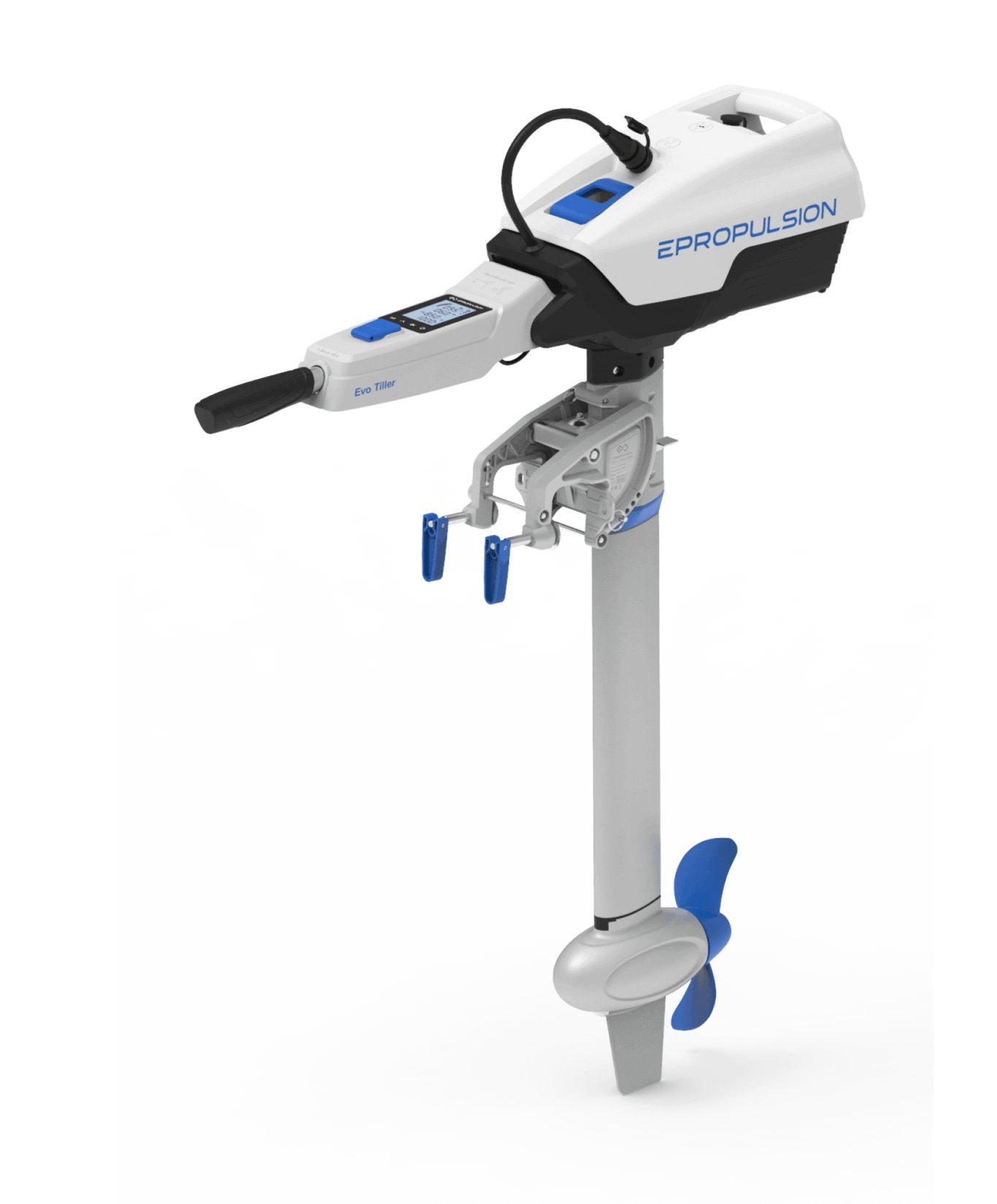

Introducing Spirit 1.0 Evo

Spirit 1.0 Evo is a portable 1kW electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276 Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The safety wristband keeps you safe in case of MOB.

HYDROGENERATION

Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.

Spirit 1.0 Evo outboard can drive the propeller to charge the battery (only the ePropulsion battery) through water flow when certain conditions are met (please refer to the user manual in the download center for the required conditions).
The hydrogeneration data is based on real tests with the anti-ventilation plate installed.

PERFORMANCE AND RANGE

At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1 kW BLDC motor, comparable with 3HP petrol outboard (propulsive power).

Power (W)	Speed (mph / kph)	Runtime (hh:mm)	Range (mile / km)
35	2.2 / 3.5	36:25	80 / 129
65	2.7 / 4.3	19:35	53 / 85.3
125	3.5 / 5.6	10:00	35 / 56
250	4.4 / 7.1	5:00	22 / 35.5
500	5.3 / 8.5	2:30	13.3 / 21.3
750	5.7 / 9.2	1:40	9.5 / 15.3
1000	6.2 / 10	1:15	7.8 / 12.5

*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

BATTERY

Positive Buoyancy

Never worry the battery drops into the water.

1276 Wh Capacity

High energy density in a compact size to build large battery capacity.

180W Solar Charging

Dual power ports allow solar charging when discharging.

E-Series Battery

Extend the runtime to an entire day by replacing the integrated Spirit battery.

FEATURES

Designed for Portability

Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.

Lightweight

Total weight is only 20 kg or 44 lbs, including the battery.

Carry Bag Set

Provide a perfect amount of space and protection.

Folding Tiller

Quick to pack and deploy your Spirit.

Digital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.

Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.

Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.

Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.

Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.

Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat

Ambidextrous Operation
Turning throttle easily either from the left-hand or right-hand side.

LITERATURE

Name	Link
Leaflet: Spirit 1.0 Evo	Downlowd
User Manual: Spirit 1.0 Evo	Downlowd
Technical Drawing: Spirit 1.0 Evo	Downlowd
