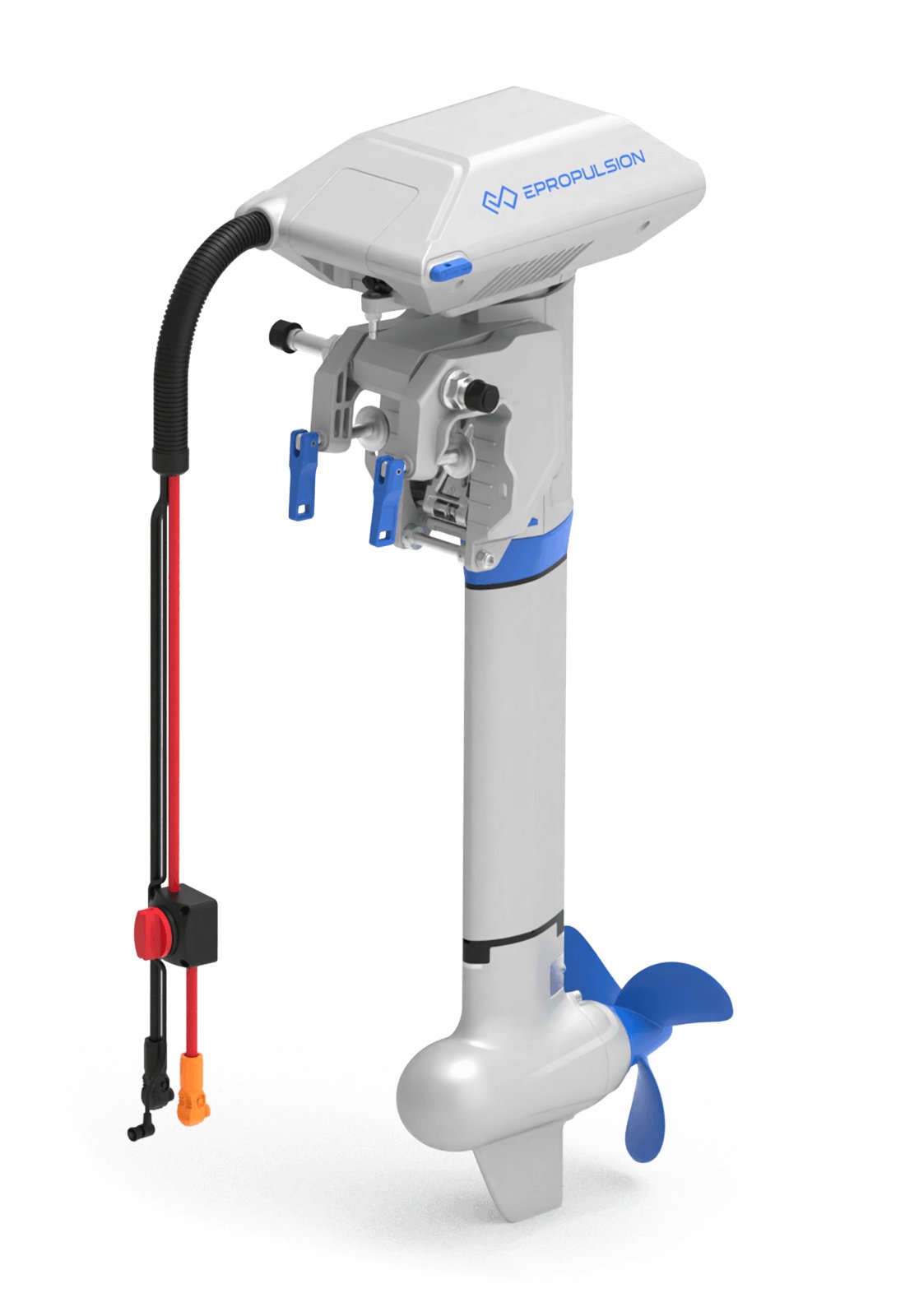

ePropulsion Navy 6.0 Evo
|
|
Specifications
|
Model |
Navy 6.0 Evo
|
Category Name |
Outboard Engines
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
ePropulsion
|
Odometer |
km
|
|
Motor |
Brushless DC motor
|
Battery |
ePropulsion E-Series Battery
|
Control |
Evo Tiller / Evo Remote Control / Evo Side Mount Control / Evo Dual Remote Control
|
|
Propeller |
11.3′′ × 8.5′′ plastic propeller
|
Rated Power |
6 kW
|
Direct Drive |
|
|
Motor Weight |
64.0 lbs
|
Shaft Length |
Short, Long
|
Input Voltage |
39V – 60V
|
|
Hydrogeneration |
|
Trim And Tilt Angle |
0°, 5°,10°,15°,20°, 35°, 50° / 65°, 80°
|
Price |
Contact for price CAD
|
|
|
|
Description
Introducing Navy
Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct-drive technology, the Navy electric outboard boat motor is quiet, Low Maintenance, and reliable.
|
|
|
|
|
INCREDIBLE RANGE
|
Incredible_Range
|
Navy Series electric outboard motors are impressively efficient to go further and faster.
| Power (Watt) |
Speed (mph / kph) |
Running Time (hh:mm) |
Range (mile / km) |
| 500 |
4 / 6.5 |
18:00 |
72 / 116 |
| 1000 |
5 / 8 |
9:00 |
45 / 72 |
| 2000 |
6.7 / 10.8 |
4:30 |
30.2 / 48.6 |
| 3000 |
8 / 13 |
3:00 |
24 / 39 |
| 4000 |
11.5 / 18.5 |
2:15 |
25.9 / 41.7 |
| 5000 |
13.5 / 21.8 |
1:50 |
24.7 / 39.8 |
| 6000 |
15 / 24.3 |
1:30 |
22.5 / 36.5 |
* The performance data is based on a 12-foot aluminum boat with one person, powered by one Navy 3.0 Evo with one E80 battery and one Navy 6.0 Evo with one E175 battery, in calm lake water.
|
|
|
HYDROGENERATION
|
Hydrogeneration
|
 Navy 3.0 / 6.0 Evo allows you to collect electricity from wind and water with hydrogeneration function. ePropulsion pioneers in the innovation of electric outboard motors.
-
Navy 3.0 Evo and Navy 6.0 Evo outboards can drive the propeller to charge the battery (only the ePropulsion battery) through water flow when certain conditions are met (please refer to the user manual in the download center for the required conditions).
-
The hydrogeneration data is based on real tests with the anti-ventilation plate installed.
-
Navy 6.0 Evo is tested with a 12.6″ x 8.7″ three-blade aluminium propeller that you could order separately.
|
|
|
BATTERY
|
Battery
 E-Series Lithium Battery
We recommend you choosing ePropulsion original battery. 48V E-Series lithium iron phosphate battery is the perfect match for your Navy electric outboards.
|
Competitive pricing
Unit price is as low as $0.5 per watt-hour.
|
High energy density
70% less weight and space than standard lead-acid batteries.
|
Longer life cycles
3000 cycles at 80% DOD.
|
Made for ePropulsion Motors
Data synced with ePropulsion motors to apply smart operation strategy.
|
|
|
FEATURES
|
Features
Four Evo Controls
You could always find a control that best fits on your boat.
|
|
 Evo Tiller
|
|
 Evo Top Mount Control
|
|
 Evo Side Mount Control
|
|
 Evo Dual Control
|
|
Digital Display
Offers real-time monitoring of the power, remaining runtime, battery level, voltage, etc.
Electric Start
Press the button and you’re ready to go. Saves your trouble pulling the cord to start.
Magnetic Kill Switch
Works as an emergency stop key for ePropulsion electric outboards. Keeps you safe on the boat.
Smooth Throttle Changing
Designed with excellent throttle response and clear throttle hand feel.
Adjustable Max Power Output
Adjustable full throttle power makes the ePropulsion electric boat motors kids-friendly and suitable for rental boats.
Ambidextrous Operation
Turning throttle easily either from the left-hand or right-hand side.
|
|
|
LITERATURE
|
Literature
Name
|
Link
|
| User Manual: Navy 6.0 Evo |
Downlowd |
| Technical Drawing: Navy 6.0 Evo |
Downlowd |
|
|
