ePropulsion X40
|
|
Specifications
|
Model |
X40
|
Category Name |
Outboard Engines
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
EPropulsion
|
Odometer |
km
|
|
Motor |
Brushless DC motor
|
Steering |
Integrated electric steering
|
Propeller |
15” x 10 3/4” propeller (available in L&R rotation) 13 3/8” x 16 3/4″ propeller (available in L&R rotation)
|
|
Rated RPM |
1500 to 2100
|
Input Power |
40kW
|
Trim And Tilt |
Power trim & tilt
|
|
Cooling System |
Closed loop liquid cooling
|
L Shaft Length |
508 mm (20″)
|
Steering Angle |
±45°
|
|
Weight L Shaft |
220.3 lbs
|
Nominal Voltage |
96 VDC
|
Weight XL Shaft |
233.7 lbs
|
|
XL Shaft Length |
635 mm (25″)
|
Trim And Tilt Angle |
-4° to 61°
|
Dimensions (L X W X H) L Shaft |
29.8 x 14.2 x 48.5″
|
|
Dimensions (L X W X H) XL Shaft |
29.8 x 14.2 x 53.5″
|
Price |
Contact for price CAD
|
|
|
|
|
Description
|

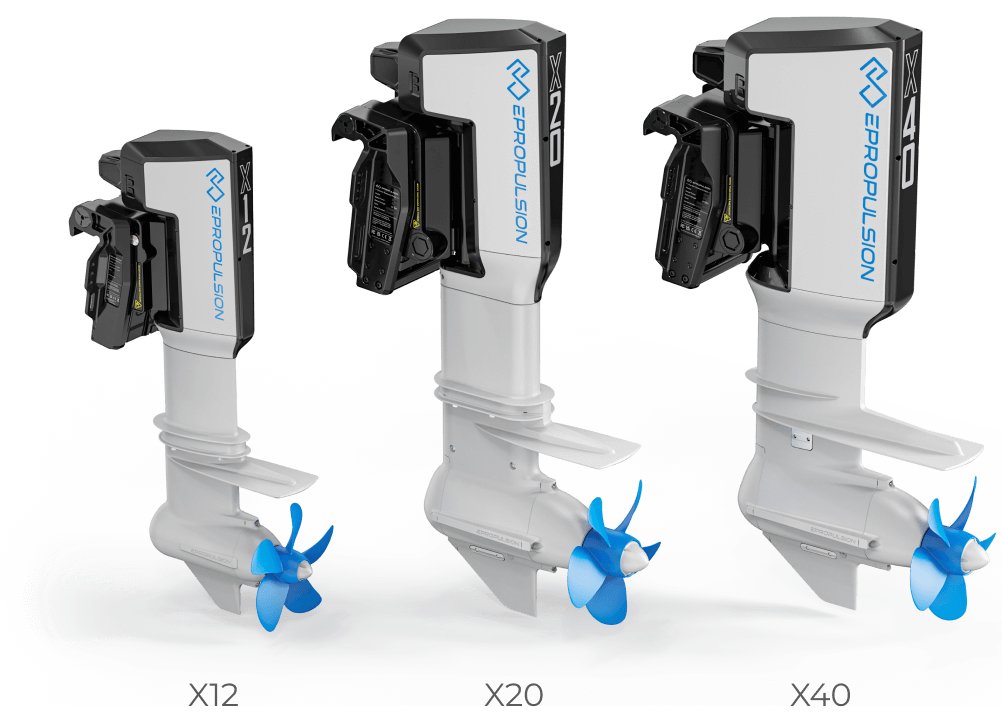

The ePropulsion X Series electric outboards are zero-emission electric propulsion system with an industry-leading powertrain efficiency of 88.2%. The X Series features a compact & fully integrated design, electric steering system, advanced driving assistance functions and connectivity service. The modular architecture not only simplifies installation but also allows for seamless integration with renewable energy sources.
|
|
|
|
|
COMPACT & FULLY INTEGRATED SPACE-SAVING DESIGN
|
Compact_&_Fully_Integrated_Space-Saving_Design
|
|
PERFORMANCE AND RANGE
|
|
|
|
BATTERY
|
Battery
 The G102-100 battery is designed to be fully compatible with your 96V X Series electric outboard motors
Fully Compatible with X Series electric outboard motors
Safe and Reliable
High Energy Density
Long Life Cycle
|
|
|
FEATURES
|
Features
Enhanced User Experience
|
 Power trim/tilt
|
 Comfortable and intuitive control
X Series’ digital helm and smart throttles, with instant digital feedback, are responsive and easy to operate, even for boating novices.
|
 Integrated electric steering
The X Series’ electric steering eliminates the need for hydraulics, so it’s easier to install and maintain. It also serves as a gateway to our Advanced Driving Assistance Systems, with enhanced safety and control features that revolutionise the boating experience.
|
Cutting-edge driving assistance features
Integrated electric steering enables automated features such as “Position Hold”, “Heading Hold”, and “360 Motions” for additional safety and easy control. More features to come in the future.
|
 Position Hold
|
 Heading Hold
|
 360 Motions
|
 ePropulsion Smart System Architecture (eSSA)
eSSA makes setting up an X Series system seamless and worry-free. The modular architecture supports simple and safe connection of multiple components and enables integration with renewable energy sources, enhancing the sustain ability of your boating experience.
|
 A comprehensive range of accessories:
▪︎ Smart Throttle
▪︎ Digital Helm
▪︎ Smart Display 5″
▪︎ Smart Display 10″
▪︎ Propellers
for different speeds
or conditions
▪︎ G102-100 Battery
▪︎ MPPT Solar Charge Controller
▪︎ DC-DC Converter
▪︎ Battery Chargers
with different power
capacities
▪︎ More coming soon…
|
 Connectivity
X Series motors have ePropulsion’s Connectivity Service built in. This keeps you in touch with your boat’s status in real time, including monitoring, reporting, and trip tracking functions.
|
 Ultra-Low Noise, Vibration, and Harshness (NVH)
At their maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Achieved through advanced damping technology and frequency resonance isolation, this means you can enjoy the water more, without shouting at each other or scaring away the wildlife.
|
 Environmentally Friendly
X Series outboards are zero-emission. Compared to a 60 hp petrol outboard, operating at full power for 100 hours, an X40 would save 1900 litres of petrol and 4.3 tonnes of CO₂ pollution.
|
|
|
LITERATURE
|
|
|
|
