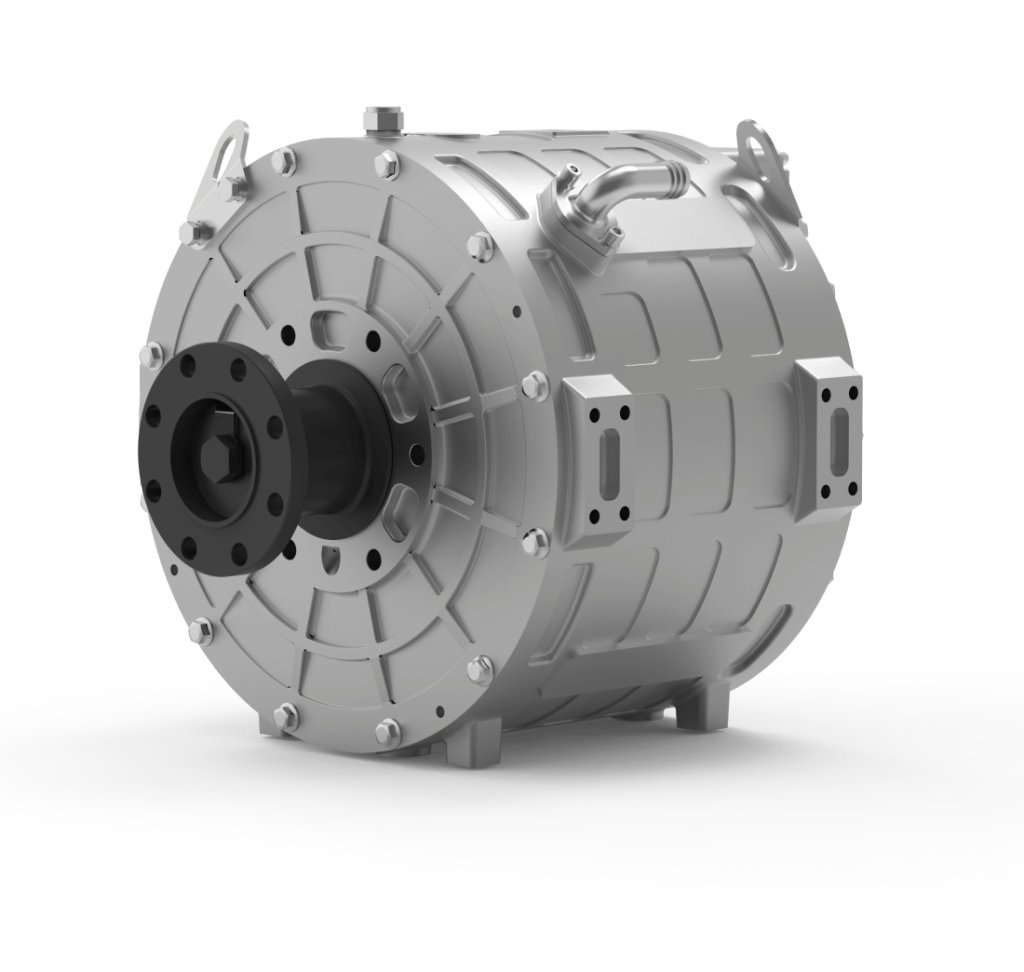

ePropulsion H-60
|
|
Specifications
|
Model |
H-60
|
Category Name |
Inboard Engines
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
ePropulsion
|
Odometer |
km
|
|
Weight |
110 kg
|
IP Rating |
IP67
|
Dimensions |
13.2 x 11.2 in
|
|
Rated Power |
60 kW
|
Rated Speed |
1150 rpm
|
Rated Torque |
478 Nm
|
|
Rated Voltage |
540 VDC
|
Cooling System |
Water Cooling
|
Insulation Level |
H
|
|
Rated Efficiency |
96%
|
Operation Temperature |
-25°C to 55°C
|
Price |
Contact for price CAD
|
|
|
|
Description
H-Series Electric Inboard Motor
H-Series inboard motors are engineered for larger sailing boats and motor vessels between 60 and 100’ (18-30 m) with a full displacement up to 200 tons, that delivers high performance with less noise, fewer vibrations and zero exhaust fumes.
|
|
|
|
|
FEATURES
|
Features
 Smaller size,
better space utilization
H-Series is about two-thirds lighter and 50% smaller than its diesel counterpart, providing installation flexibility and maximizing payload and passenger space. The flat wire motor increases slot fill by 25% and increases power density.
|
Modular design,
custom solutions to suit your needs

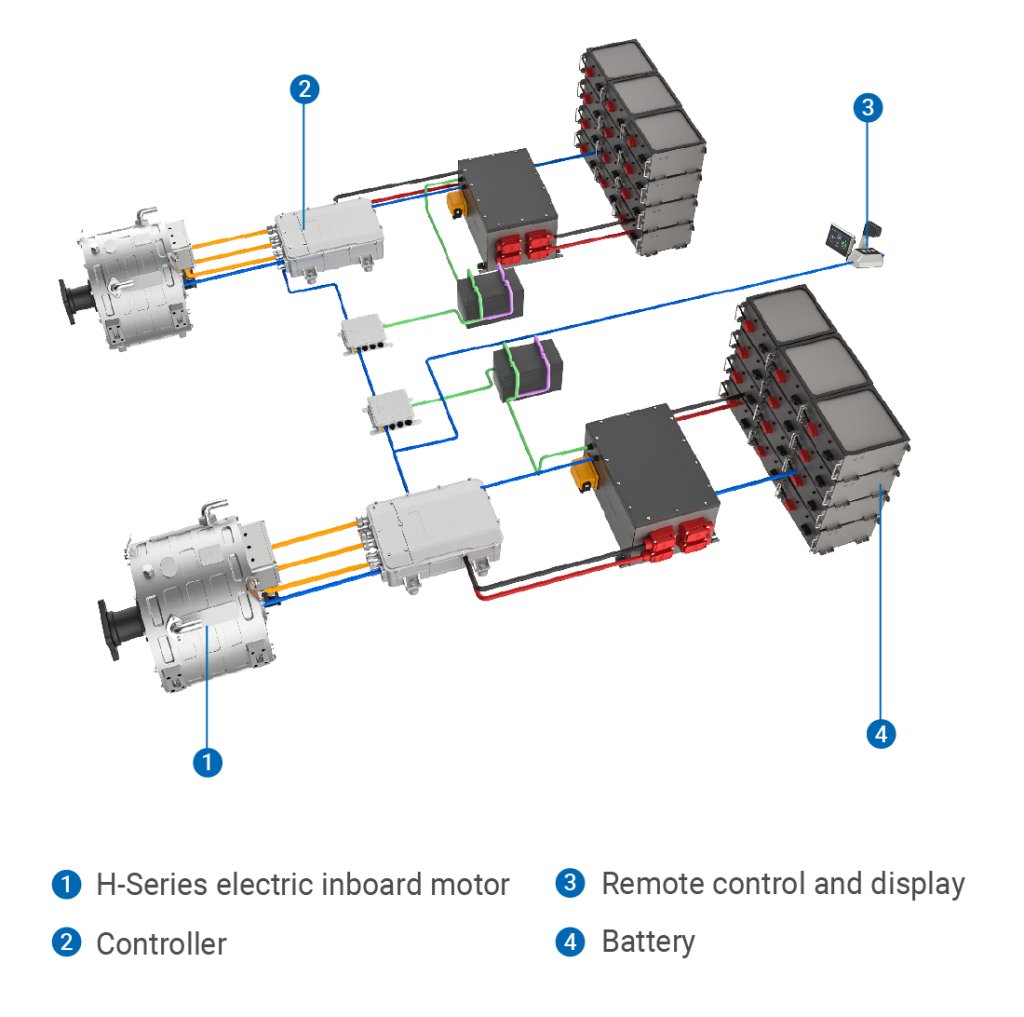

The modular design enables manufacturers to easily extend the range and power by adding motors, controllers and batteries, and having more flexibility.
|
Boating IoT system,
smart and customizable
The boating IoT (ePropulsion Connectivity Service) can be customized and satisfy the customers’ needs of remote monitoring and integrated management.
|
Optimum performance,
pioneering technology
Equipped with pioneering permanent magnet motor technology, the H-Series delivers up to 2000 Nm maximum torque and delivers an impressive 96% efficiency, higher than the traditional 100 kW AC asynchronous motor.
|
High
Expandability
Different power combinations can be chosen according to different power and range requirements, which allows the H-Series to be more expandable.
|
Safety
and reliability
▪︎ IP67 waterproofing
▪︎ Anti-corrosion
▪︎ High accuracy position feedback
▪︎ High torque density
▪︎ Closed-loop cooling
|
|
|
BATTERY
|
Battery
Custom-built
Battery can be tailored to fit customers’ needs. The battery power needs to be calculated and determined according to the range requirements. For a 100 kW electric inboard motor operating at full power for 1 hour, the propulsion system will need a 100 kWh battery which can be developed based on the provided specs.
|
| System Rated Output Voltage |
540 VDC |
| System Output Voltage Range |
487 ~ 604 VDC |
| Battery Capacity ** |
/ |
|
Total System Energy **
|
/ |
| Discharge Temperature |
-30℃ ~ 60℃ |
| 25℃ Cycle Life (80% DOD) |
＞3500 times |
| 25℃ Storage Life |
＞8 years |
| Charging Temperature |
0℃ ~ 60℃ |
|
|
|
LITERATURE
|
|
|
|
CONTROLLER
|
Controller
 |
| Logic Power Supply Range |
9~16 V |
| Rated Input Voltage |
540 VDC |
| Input Voltage Range |
400 ~ 720 VDC |
| Rated Power |
160 kVA |
| Rated Output Current |
270 A |
| Maximum Efficiency |
98% |
| IP Rating |
IP67 |
|
|
|
