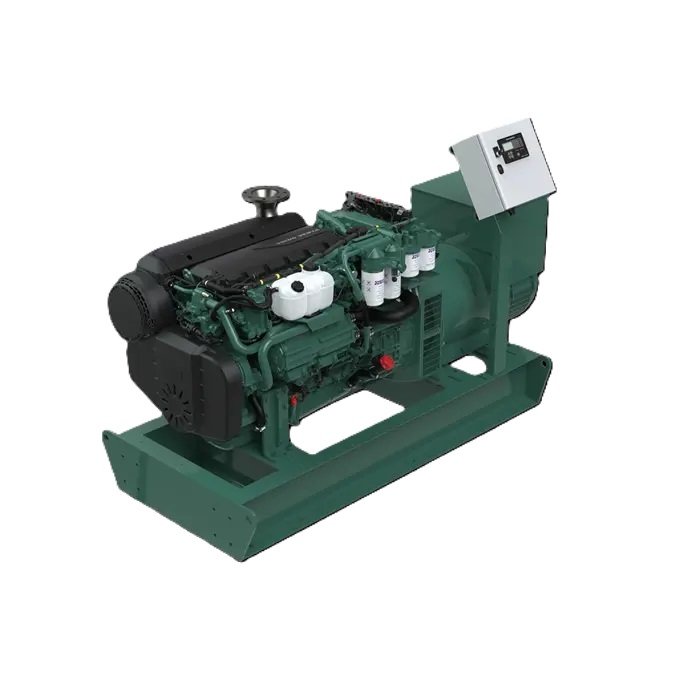

Volvo Penta D8 MG HE KC Marine Genset 218 kWe
|
|
Specifications
|
Model |
D8 MG HE KC Marine Genset
|
Category Name |
Engines
|
Year |
2026
|
|
Sale Type |
New
|
Manufacturer |
Volvo Penta
|
Odometer |
km
|
|
Displacement Litres |
7.7 litres
|
Price |
Contact for price CAD
|
|
|
|
Description
- Durable engine design
- Ladder frame bolted to the engine block
- Electronically controlled common-rail fuel system
|
| Volvo Penta D8 MG is available in two versions: 50 Hz, 1,500 rpm; and 60 Hz, 1,800 rpm. In-line 6-cylinder, marine diesel genset using common-rail fuel injection, overhead camshaft and a twin-entry turbo. Available in F and H class. |
|
|
|
FEATURES & BENEFITS
|
Features_&_Benefits
A comprehensive solution
The Volvo Penta Genset system offers a comprehensive solution for a ship’s onboard power requirements. It comes with an engine, generator and monitoring system, all tested and ready for onboard installation. The engine and generators are type-approved by major classification societies. The genset can be delivered with full classification certificates and can be classified in F and H classes.
|
Reliable performance
The engine’s durable design, featuring a ladder frame bolted to the engine block, provides high reliability. Its rigid in-line cylinder block, generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and turbo contribute to reliable performance and strong power.
|
Designed for easy installation and service
Designed to withstand high exhaust back pressure, this generator set is optimized for installations that require additional third-party emission control equipment. Its accessible design facilitates service and maintenance.
|
Optimized fuel efficiency and reduced emissions
The common-rail fuel system contributes to optimized fuel efficiency. The control unit monitors several parameters which contribute to reduced overall fuel consumption and emissions. The common-rail technology helps reduce vibrations and noise levels.
|
Optimized load-taking capability
The twin-entry turbo with pulse charging, together with the efficient speed control system, give this engine optimized load-taking capability.
|
Marine Commercial Control System
Volvo Penta Marine Commercial Control System is an engine control and monitoring system designed for easy integration into the ship’s control system. All actions are displayed with text messages and logged in a non-erasable memory.
|
|
|
PERFORMANCE
|
|
|
|
DETAILS
|
Details
| Cooling System |
Heat Exchanger Cooling, Keel Cooling, Central Cooling |
| Length mm |
2513 mm |
| Width mm |
1051.5 mm |
| Height mm |
1650 mm |
| Engine Weight Kg |
1810 |
| Product Series |
8 liter series |
|
|
