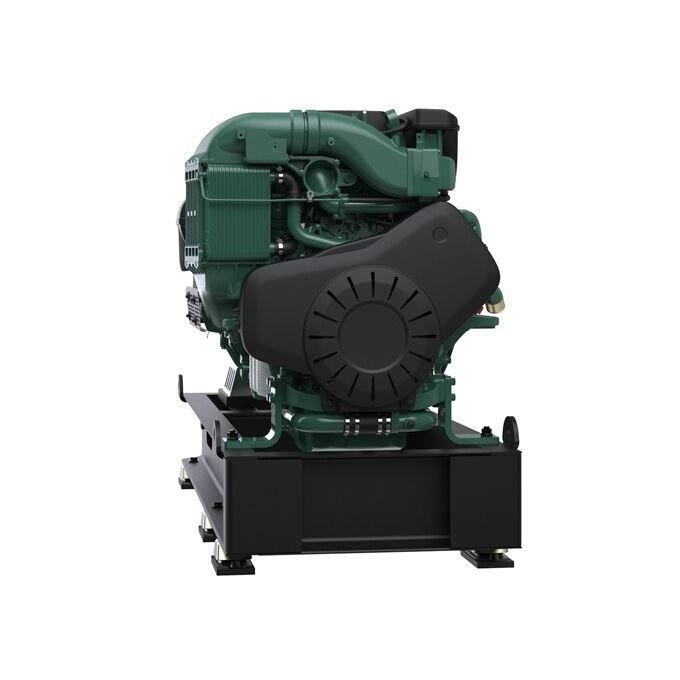

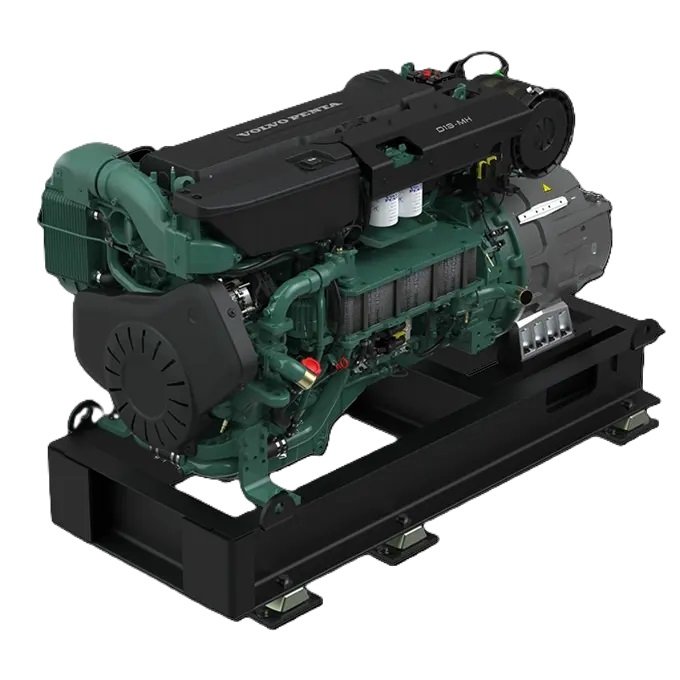

Volvo Penta D13 MH VG 385 kWe
|
|
Specifications
|
Model |
D13 MH VG
|
Category Name |
Engines
|
Year |
2026
|
|
Sale Type |
New
|
Manufacturer |
Volvo Penta
|
Odometer |
km
|
|
Displacement Litres |
12.8 litres
|
Price |
Contact for price CAD
|
|
|
|
Description
- Improved system efficiency
- Lightweight, compact and durable design
- Advanced monitoring with Volvo Penta Marine Commercial Control System
- Twin-entry turbo with pulse charging
- EMS electronic control system designed to improve fuel efficiency
|
| The Volvo Penta D13 Variable Speed Genset is an innovative marine diesel generator set that combines a streamlined, lightweight build with enhanced efficiency. This genset, powered by a 6-cylinder, 13-liter engine, offers Marine classification options from DNV, LR, BV, RINA, and ABS. Designed to operate at various fixed or full variable speeds, it incorporates electronically controlled injection timing for optimized performance. |
|
|
|
FEATURES & BENEFITS
|
Features_&_Benefits
A comprehensive solution
The Volvo Penta Genset system is a comprehensive solution for a ship’s onboard power requirements. It includes an engine, generator, and monitoring system, all tested and ready for installation onboard. The engine and generators are type approved by major classification societies. The genset can be delivered with classification certificates.
|
Durable and high-performance
This auxiliary engine’s durable design, featuring a ladder frame bolted to the engine block, contributes to high reliability across various applications. Its rigid in-line cylinder block, generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and twin-entry turbo contribute to high engine performance.
|
Designed for easy installation and service
Designed to withstand high exhaust back pressure, this auxiliary engine is suited for installations that require additional third-party emission control equipment and offers a straightforward installation process. Its accessible design facilitates service and maintenance.
|
Improved fuel efficiency and reduced emissions
By controlling the unit injectors and fuel distribution, the EMS electronic management system optimizes the fuel-air mixture to improve the combustion. This results in improved thermal efficiency, enhanced fuel efficiency, and reduced exhaust emissions.
|
|
|
POWER OPTIONS
|
Power_options
|
Rated Power Kwe
|
Rated Power
|
Rated speed
|
Emission Compliance
|
Emissions Curve
|
| 385 kWe |
441 kW |
1900 rpm |
IMO NOx Tier II, IMO NOx Tier III, China II, EU Stage V, EPA Tier 3 |
E3, E2, C1 |
|
|
PERFORMANCE
|
|
|
|
DETAILS
|
Details
| Cooling System |
Heat Exchanger Cooling, Keel Cooling, Central Cooling |
| Product Series |
13 liter series |
| Dimensions (L x H x W) |
2237 mm x 1581 mm x 960 mm |
| Engine Weight Kg |
2387 |
|
|
