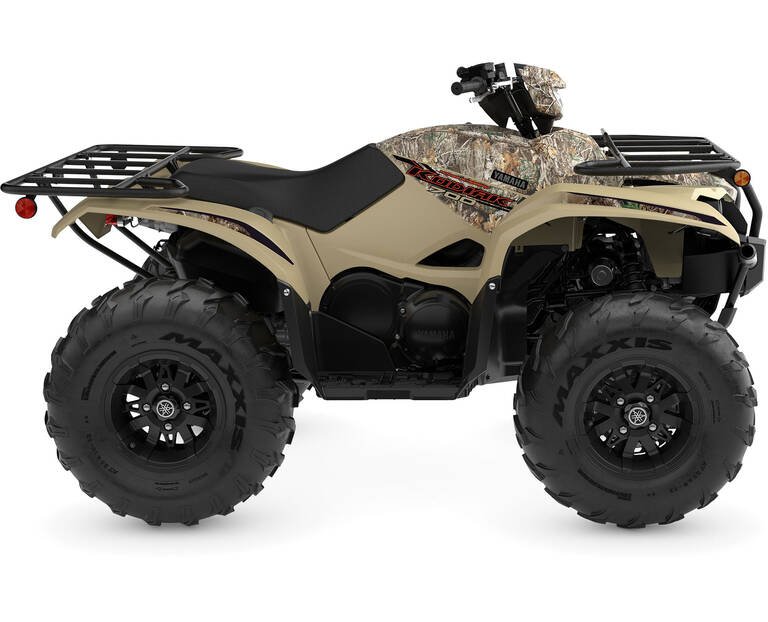

2024 Yamaha KODIAK 700 EPS
|
|
Specifications
|
Model |
Kodiak
|
Category Name |
ATVs
|
Year |
2024
|
|
Sale Type |
New
|
Manufacturer |
Yamaha
|
Color |
beige automnal / Realtree Edge
|
|
Engine Size |
686cc
|
DISPLACEMENT |
686cc
|
Price |
Contact for price CAD
|
| |
|
|
|
Description
|
Devouring chores with comfort and confidence, this rugged and reliable machine makes light of tough work.
|
|
|
|
HIGHLIGHTS
|
HIGHLIGHTS
COMFORT
The low seat improves rider comfort and simplifies mounting and dismounting, while providing plenty of room for the rider to move during riding. Despite the full-size performance, the Kodiak 700 EPS features a more compact body design similar to a mid-sized ATV to ease overall feel and handling.
|
CAPABILITY
With the simple push of a button, the three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD. An override button allows the engine to reach maximum rpm in full differential lock mode.
|
CONFIDENCE
Rugged composite front bumper resists scratching and won’t rust.
|
|
|
KEY FEATURES
|
KEY_FEATURES
- Big Bore Engine Built to Tackle the Real World
- High-Performance Ultramatic® Transmission
- Selectable 4WD
- Stainless Steel Exhaust
- Drive System Air Intake
- High-Capacity Radiator
|
|
|
FEATURES AND BENEFITS
|
Features_&_Benefits
ENGINE
- Big Bore Engine Built to Tackle the Real World
- The Kodiak 700 combine big bore power without losing an ounce of comfort
- The 700-class engine with strong midrange performance and optimized torque right where you use it most
- Gearing designed for low rpm cruising and smooth running motor mounts to create excitement on the trails while still being quiet and potent for the job site
- High-Performance Ultramatic® Transmission
- Features gated shifter, dual-range (Hi/Lo) drive plus reverse gear
- Most advanced and durable CVT system available
- Automatic centrifugal clutch maintains constant belt tension for reduced belt wear
- Sprag clutch delivers natural all-wheel engine braking for control and confidence
- Selectable 4WD
- On-Command® 4WD system lets you switch between 2WD, 4WD limited-slip and 4WD with diff lock
- Diff lock initiated by a simple push of a button, giving the rider direct control over available traction
- Stainless Steel Exhaust
- Maintains clean-running performance
- Features screen-type spark arrestor for great power with minimum noise output
- Drive System Air Intake
- Specially designed, high-mounted drive system air intake
- Helps reduce drive system temperatures and assists in keeping water and debris from entering the drive case
- Increases power and torque while providing additional room for on-board storage
- High-Capacity Radiator
- Efficient high-capacity radiator with fan assist that delivers plenty of air flow for maximum cooling efficiency
- Positioned high in the frame for optimal protection
|
CHASSIS
- Trail-Ready Chassis
- With plenty of ground clearance and adjustable suspension, the Kodiak tackles rough terrain with ease.
- Wide-arc A-arms and full-body skid plates ensure the Kodiak is able to handle anything the farm or trail can throw at it
- High-Performance Tires
- To maximize available traction, the Kodiak features 25-inch Maxxis® tires
- Provide precise steering feel and feedback
- Class-Leading Power Steering
- Reduced fatigue, excellent control and trail feel all come standard with Kodiak's best in industry, speed-sensitive Electric Power Steering (EPS)
- Independent Double Wishbone Front and Rear Suspension
- 7.6 inches of front wheel travel / 9.1 inches of rear wheel travel
- Provides excellent rider comfort even on the toughest trails
- Nitrogen-charged shocks with 5-way adjustable preload
- Aggressive and Durable Styling
- Rugged composite front bumper resists scratching and rust
- Injection-molded fenders and CV joint guards protect again rock and debris
- Compact Ergonomics
- A plush seat improves rider comfort for extended days exploring
- Plenty of room for the rider to move during aggressive riding
- Despite full size performance, Kodiak features a more compact body design similar to mid-sized ATV for overall ease in handling
- Extensive Cargo Capacity
- Rugged, large-diameter steel cargo racks with durable wrinkle paint finish
- 308 pounds of total carrying capacity
- On-board storage compartment keeps things try
- Work-Ready Tow Capacity
- Tow up to 600 kg (1322 lb)
- Generous Ground Clearance
- Offers an impressive 10.8 inches of maximum ground clearance
- Full-length composite skid plate for underbelly protection
|
DESIGN
- Ready for Accessories
- Engineered in concert with a range of accessories for perfect fit and function
- Standard 12V power point to keep devices charged.
|
|
|
ENGINE
|
ENGINE
Liquid-cooled, SOHC 4-stroke
IGNITION
TCI
STARTING
Electric
FINAL_DRIVE
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
DISPLACEMENT
686cc
TRANSMISSION
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
FUEL_DELIVERY
Yamaha Fuel Injection (YFI), 44 mm
BORE_AND_STROKE
102 mm x 84 mm
COMPRESSION_RATIO
10 : 1
|
|
CHASSIS
|
TIRES_(REAR)
Maxxis MU20, AT25 x 10-12
BRAKES_(REAR)
Multi-Disc wet brake
TIRES_(FRONT)
Maxxis MU19, AT25 x 8-12
BRAKES_(FRONT)
Dual hydraulic disc
SUSPENSION_(REAR)
Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
SUSPENSION(FRONT)
Independent double wishbone; 5-way preload adjustment / 180 mm (7.1") of wheel travel
|
|
CRITICAL DATA
|
WIDTH
1180 mm (46.5")
HEIGHT
1240 mm (48.8")
LENGTH
2070 mm (81.5")
WHEELBASE
1250 mm (49.2")
WET_WEIGHT
311 kg (686 lb)
SEAT_HEIGHT
860 mm (33.9")
FUEL_CAPACITY
18 L
TOWING_CAPACITY
600 kg (1,322 lb)
MAXIMUM_GROUND_CLEARANCE
274 mm (10.8")
|
|
