Overview

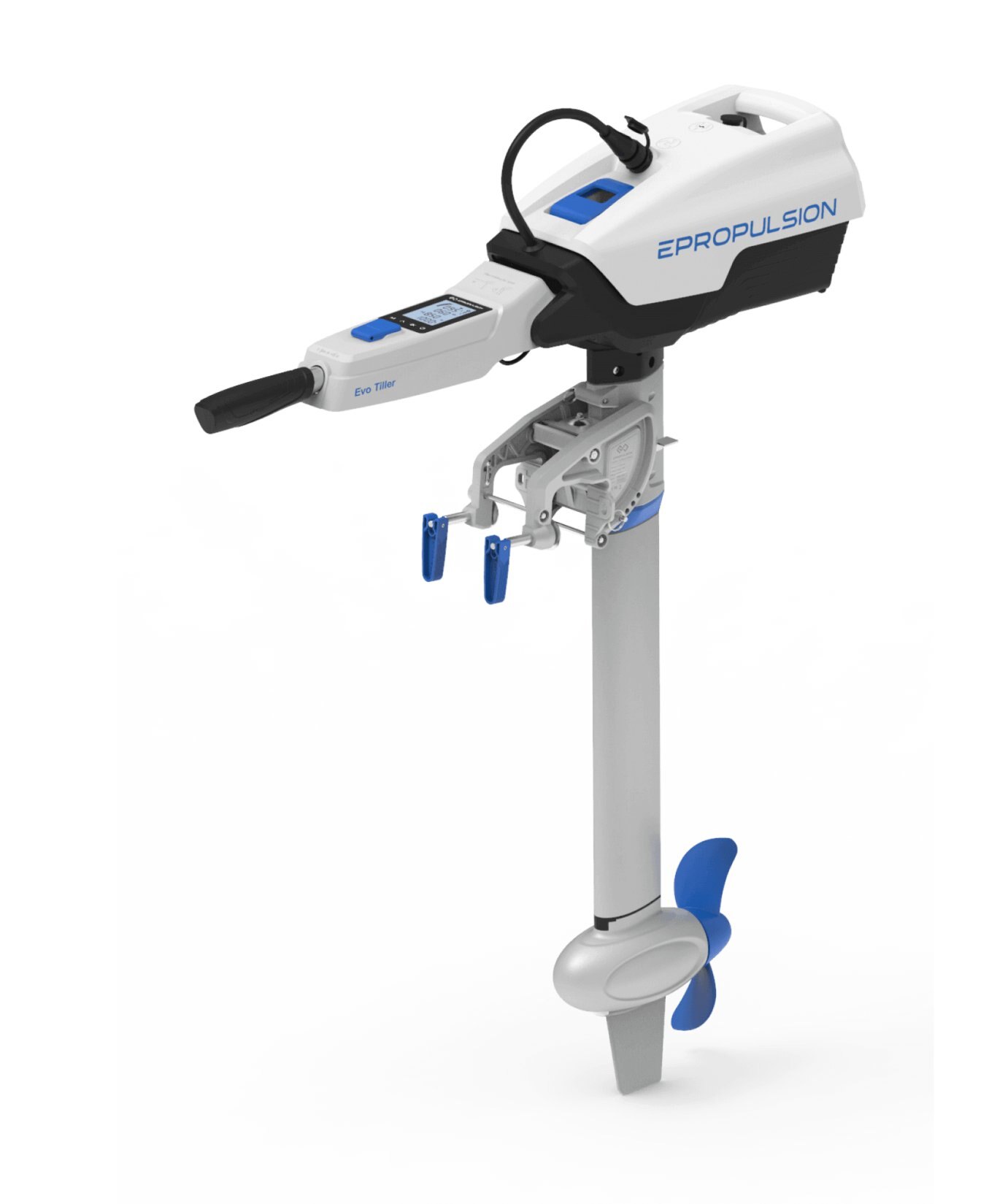

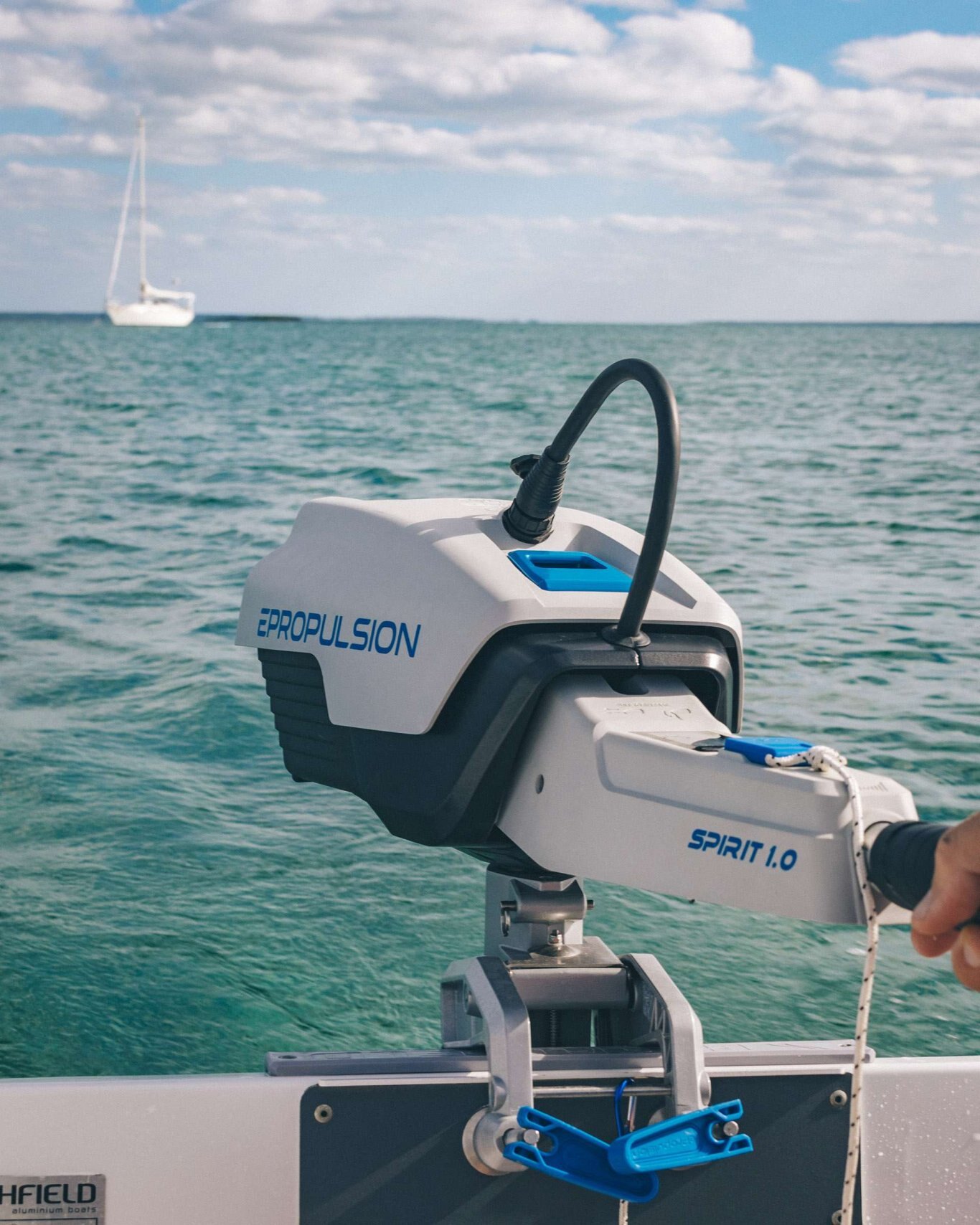

Introducing Spirit 1.0 Evo

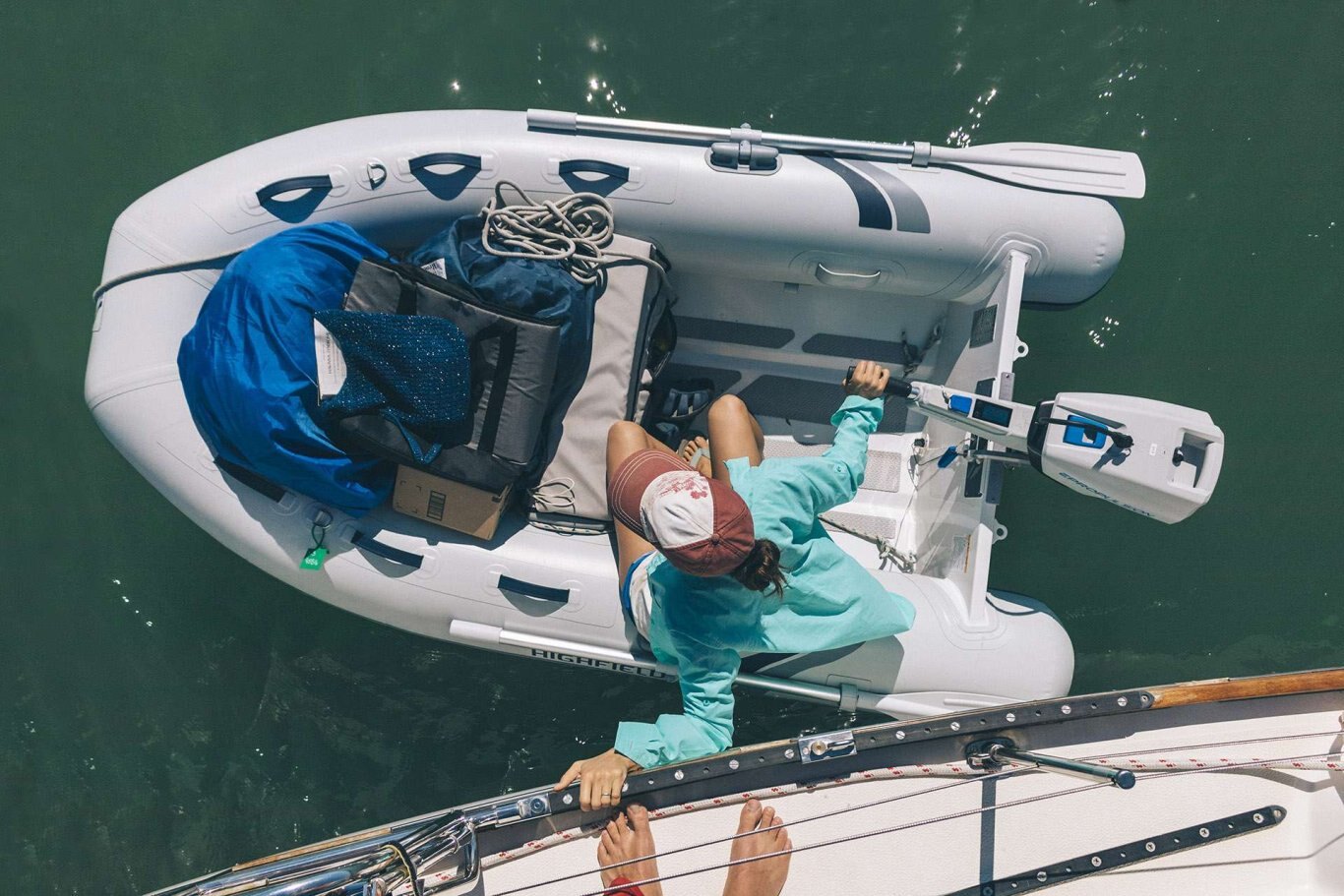

Spirit 1.0 Evo is a portable 1kW electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276 Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The safety wristband keeps you safe in case of MOB.





Specifications
Model
Spirit 1.0 Evo
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
ePropulsion
Motor
Brushless DC motor
Battery
Spirit Battery Plus, 1276 Wh li-ion polymer
Control
Evo Tiller
Propeller
11″ × 5.8″ 2-blade composite propeller
Rated Power
1 kW
Motor Weight
24.9 lbs
Shaft Length
Short, Long
Fast Charging
3.5 Hrs
Input Voltage
39V – 60V
Battery Weight
19.2 lbs
External Battery
Yes, and E-Series Battery recommended
Standard Charging
8.5 Hrs
Trim And Tilt Angle
0°, 7°, 14°, 21° / 70°
hydrogeneration

ePropulsion Spirit 1.0 EvoSpirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.

  • Spirit 1.0 Evo outboard can drive the propeller to charge the battery (only the ePropulsion battery) through water flow when certain conditions are met (please refer to the user manual in the download center for the required conditions).
  • The hydrogeneration data is based on real tests with the anti-ventilation plate installed.



performance and range

At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1 kW BLDC motor, comparable with 3HP petrol outboard (propulsive power).

Power (W) Speed (mph / kph) Runtime (hh:mm) Range (mile / km)
35 2.2 / 3.5 36:25 80 / 129
65 2.7 / 4.3 19:35 53 / 85.3
125 3.5 / 5.6 10:00 35 / 56
250 4.4 / 7.1 5:00 22 / 35.5
500 5.3 / 8.5 2:30 13.3 / 21.3
750 5.7 / 9.2 1:40 9.5 / 15.3
1000 6.2 / 10 1:15 7.8 / 12.5

*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.



battery

ePropulsion Spirit 1.0 EvoPositive Buoyancy

Never worry the battery drops into the water.

ePropulsion Spirit 1.0 Evo1276 Wh Capacity

High energy density in a compact size to build large battery capacity.

ePropulsion Spirit 1.0 Evo180W Solar Charging

Dual power ports allow solar charging when discharging.

ePropulsion Spirit 1.0 EvoE-Series Battery

Extend the runtime to an entire day by replacing the integrated Spirit battery.



features

Designed for Portability

Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.

ePropulsion Spirit 1.0 EvoLightweight

 Total weight is only 20 kg or 44 lbs, including the battery.

ePropulsion Spirit 1.0 EvoCarry Bag Set

 Provide a perfect amount of space and protection.

ePropulsion Spirit 1.0 EvoFolding Tiller

 Quick to pack and deploy your Spirit.

ePropulsion Spirit 1.0 EvoDigital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.

Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.

Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.

Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.

Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.

Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat

Ambidextrous Operation
Turning throttle easily either from the left-hand or right-hand side.



literature

Name

Link
Leaflet: Spirit 1.0 Evo Downlowd
User Manual: Spirit 1.0 Evo Downlowd
Technical Drawing: Spirit 1.0 Evo Downlowd
